Melanoma Detector

I found my high school project that got me into NYU.

Very simple stuff, but I am proud that I figured all this out from scratch, by myself, before “AI”.

Published it for you on my personal site - sign up there to be the first to access some of my future projects.

In our world, skin cancer is taking the lives of nearly 60 000 people each year. Even for professional dermatologists with the years of experience it is difficult to distinguish a benign nevus from a malignant melanoma.

In the past years, melanoma detection and classification were nearly solved by the use of machine learning. However, there is still an opportunity to further advance and improvement. In this project, I am trying to find the best approach to detect skin cancer. I have already compared machine learning models, graph algorithms, and neural networks of different architectures. The research produced unexpected outcomes: our standard symptoms of cancerous lesion, such as size, color, or shape are not sufficient to make an accurate diagnosis. Neural networks “see” something that is outside our understanding, and to finally solve the problem of skin cancer detection we need to understand underlying reasons of decisions that are produced by neural networks.

Part 1. Dataset and Preprocessing

The training data was taken from the ISIC 2020 dataset.

It consists of 33 000 skin lesion images. Every image is labeled as benign or malignant and vary in size. To use these images as an input to a neural network I resized them to be 512 x 512 pixels and transformed into numpy array.

The main focus of this project is to showcase the potential of different approaches in skin cancer detection, so I decided to begin with the approach used by dermatologists - ABCDE's.

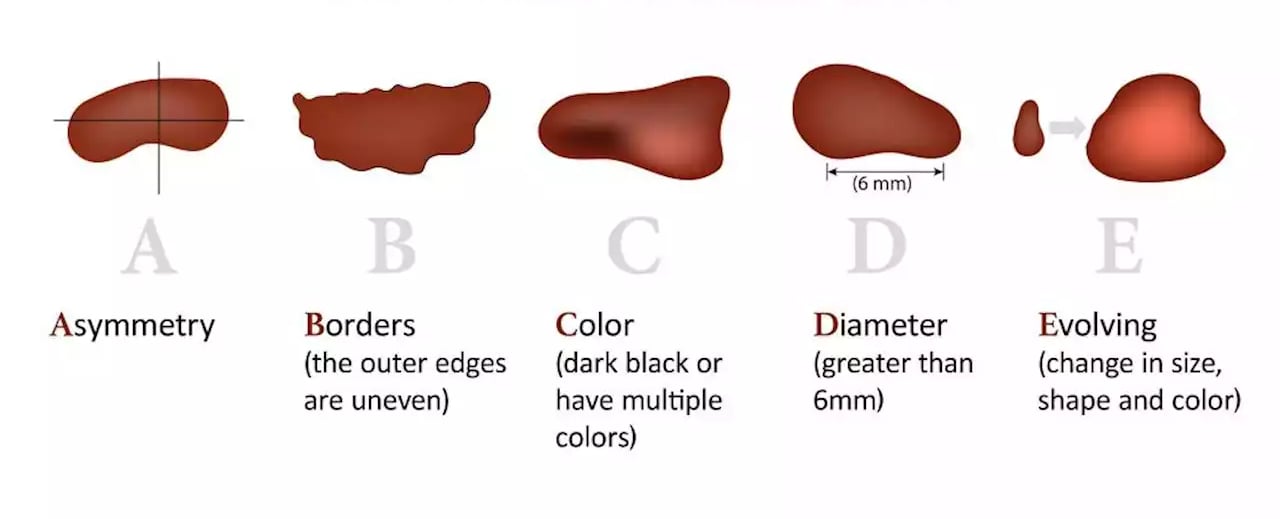

A, B, C, D, and E are the first letters of the symptoms that are usually used by dermatologists to distinguish benign and malignant lesions. The picture below briefly describes them.

My algorithmic approach is based on the 3 of them:

• Asymmetry
• Color
• Diameter

You can find the realization of computing these feature in Preprocessing.py.

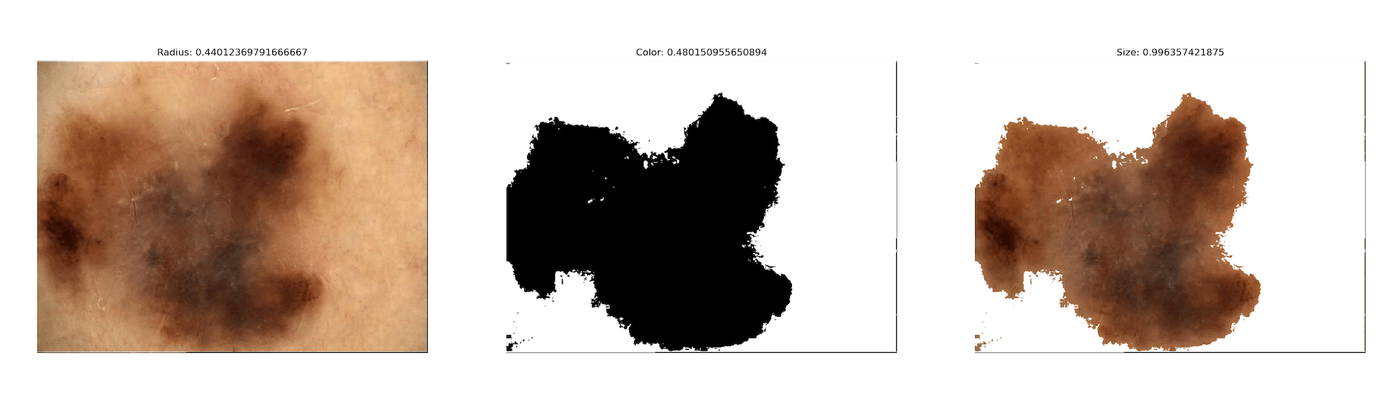

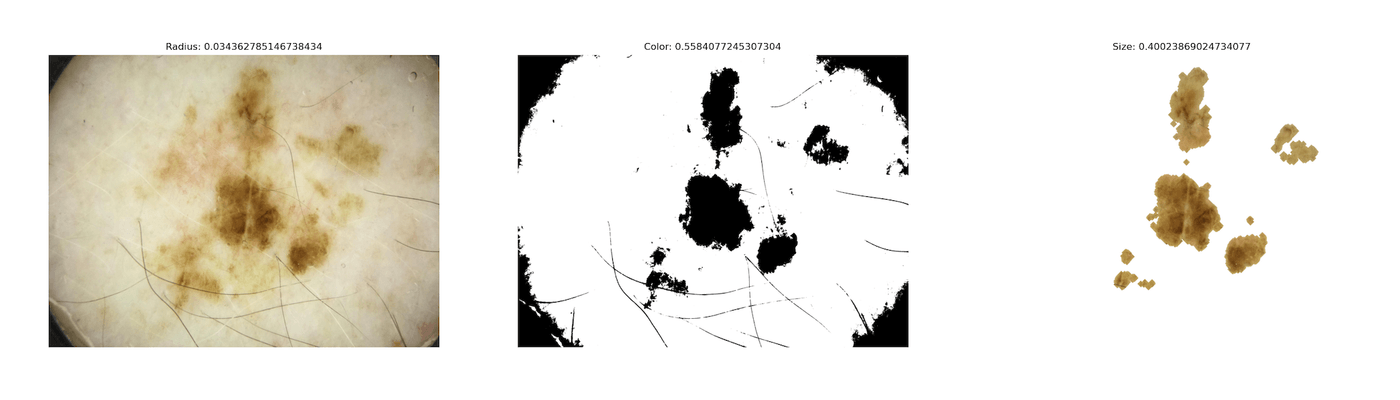

In the pictures below you can see the stages of image preprocessing and corresponding Asymmetry(Radius), Color, and Diameter(Size) metrics scaled between 0 and 1.

In my realization, preprocessing is divided into 3 stages.

After the first stage image is resized and centered. In the second stage the program computes the image's mask by thresholding, erosion, and closing. In the final stage, program runs graph algorithm to delete the mask's vignette and reassign colors to the lesion. Preprocessing takes about 1.5 seconds per image, which is far from good if we want to detect melanoma in real-time.

You can download preprocessed coefficients and models for the training set from my Google Drive.

Part 2. Deep Learning

Every approach below was evaluated by SIIM-ISIC competition test set on Kaggle.

Algorithmic Approach

First, I tried predicting melanoma by the coefficients computed in the preprocessing stage. It took about 1.8 second to process each image. The resulting accuracy(52%) was a little better than flipping a coin, so I decided to use Neural Networks instead.

Dense Neural Network

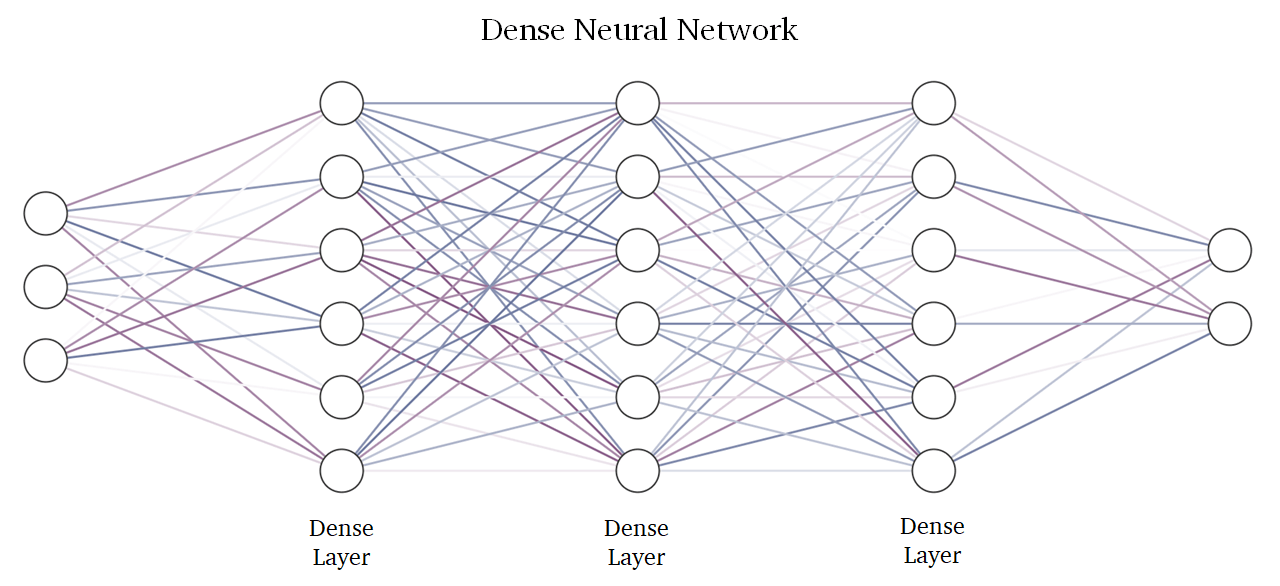

To begin with, I tested the naive dense approach: recolor every pixel to grayscale and connect to the dense layer. Then, create 1 or 2 dense layers with relu activation and an output layer with sigmoid activation. The increase in accuracy was gradual. After a 10-hour training, my model achieved 71% validation accuracy. However, then the model started overfitting. In addition, the training was too complex and time-consuming, thus 71% - is a good estimate of what simple neural networks are capable of.

Convolutional Neural Network

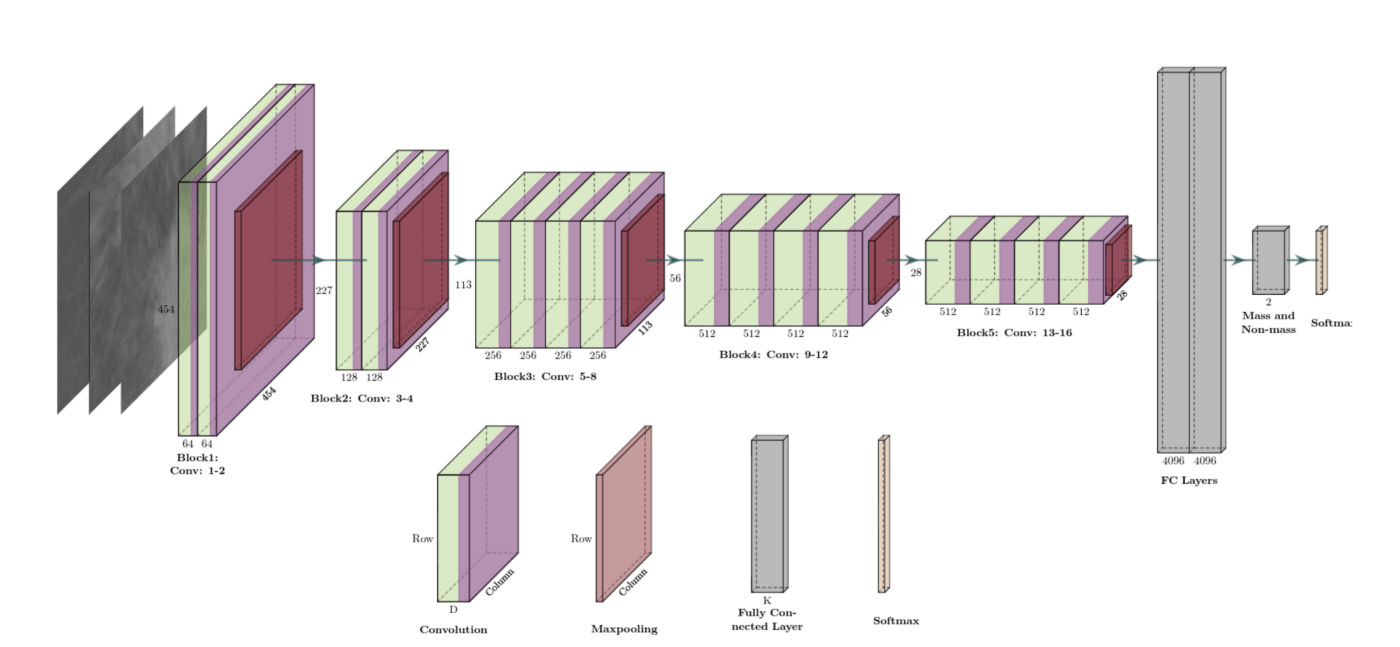

Dense NNs have shown significant accuracy improvement, but state-of-the-art solutions are based on convolutional neural networks. To learn more about CNNs check out an article at TowardsDataScience.

Convolutional neural network approach raised accuracy by 8% and decreased computational time by 30%. However, to achieve desired accuracy, machine learning engineers use CNNs, which were trained beforehand on images from ImageNet.

Pre-Trained CNN

From the variety of pre-trained models I have chosen EfficientNetV2L due to its accuracy and sequential structure. After training 2 dense layers as an extension to pre-trained model, I enabled training for the last 2 EfficientNet blocks. This fine-tunning gave my model 2% additional validation accuracy. The resulting accuracy reached 83%, which is way more accurate than professional dermatologist's diagnosis.

Hybrid CNN

Overall, I achieved good metrics and the next step was to combine different methods. I concatenated two models: algorithmic and pre-trained CNN. Validation accuracy increased by 1%, but computational time also raised extremely - by 4 times. Therefore, it is not efficient to combine algorithmic and deep learning approaches in skin cancer detection.

Approach Comparison Table:

Part 3. Telegram Bot

To benefit the people all around the globe, I decided to deploy my neural network as a telegram bot for public use. You can find the corresponding code in Melanoma-Bot.py. Feel free to make suggestions and pull requests. The usage of the bot is pretty straightforward:

1. Start the bot.
2. Send an image or a file of a skin lesion.
3. Get the diagnosis: ok or might be cancerous.

Part 4. Real-Time Detection

My project contains a realization of a fast model for melanoma detection. It is based on the MobileNet keras application, and it is able to process up to 30 frames a second. So, now it is possible to get approximate predictions in real time. You can adjust parameters and train your own model using Fast-CNN-Model.ipynb.

Also, I did an OpenCV app, which is using computer's webcam as a detection camera. It produces pretty accurate predictions with the overall 65% accuracy. The framerate is about 15 frames/second.

It is easy to use the app:

1. Run the Real-Time-Detector.py.
2. Place a lesion near the camera.
3. Get the prediction - you will see a rectangle in the upper-left corner. If it is red, then the lesion is probably cancerous. Otherwise, it is probably not.

Down below are the examples of the program usage:

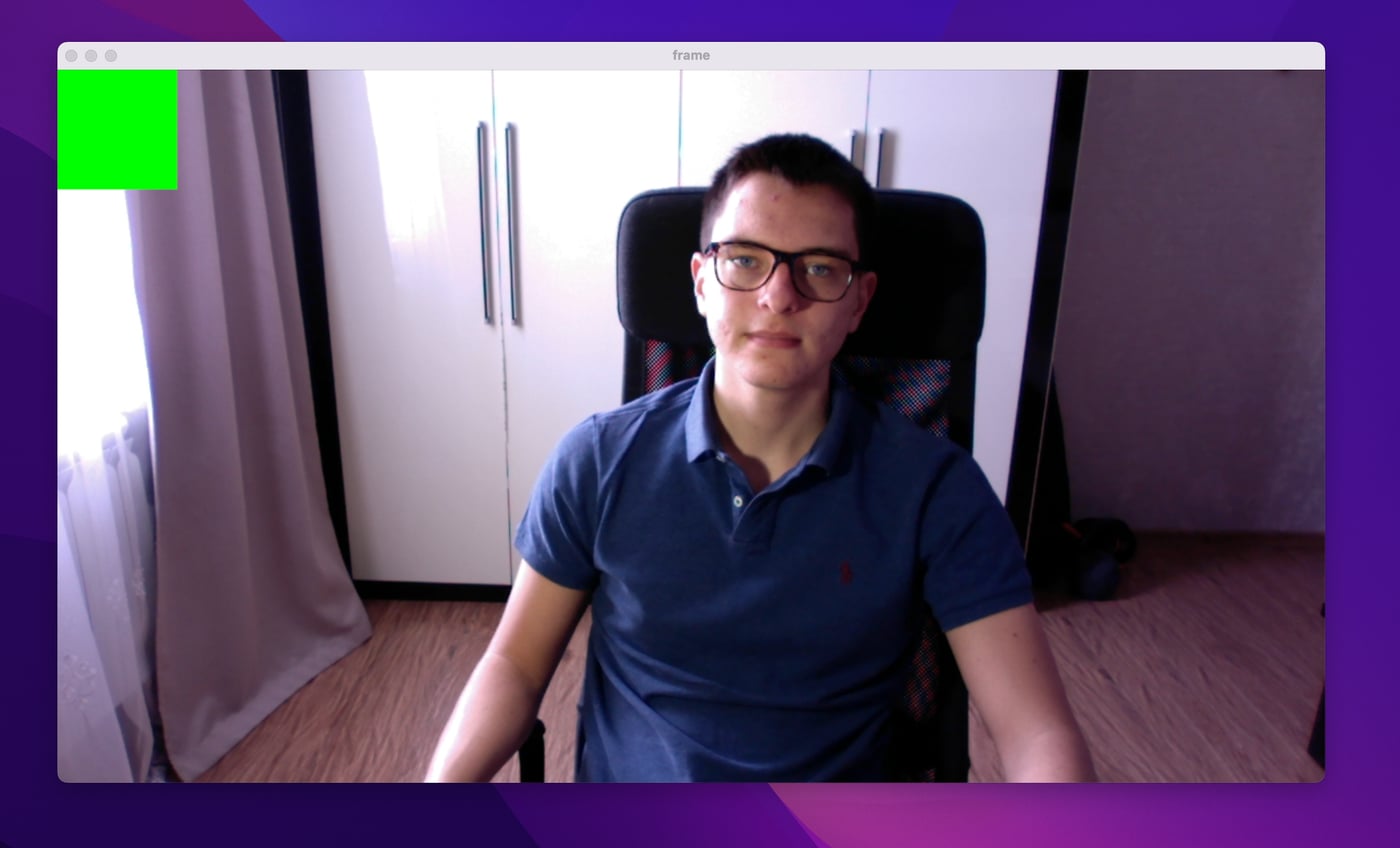

When NN cannot detect any lesions, the rectangle is green.

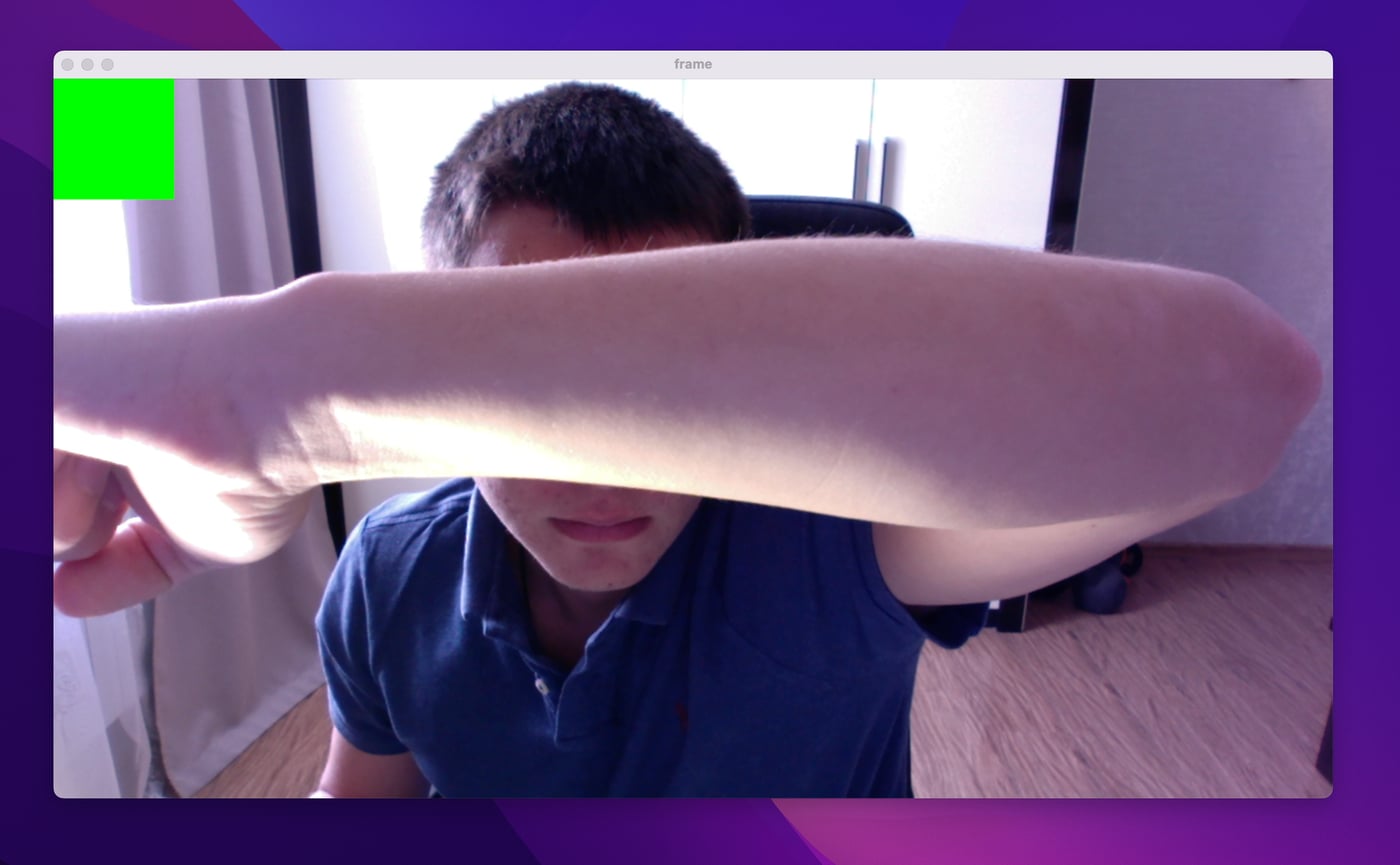

It is also green when skin condition is normal and NN does not identify lesions as cancerous.

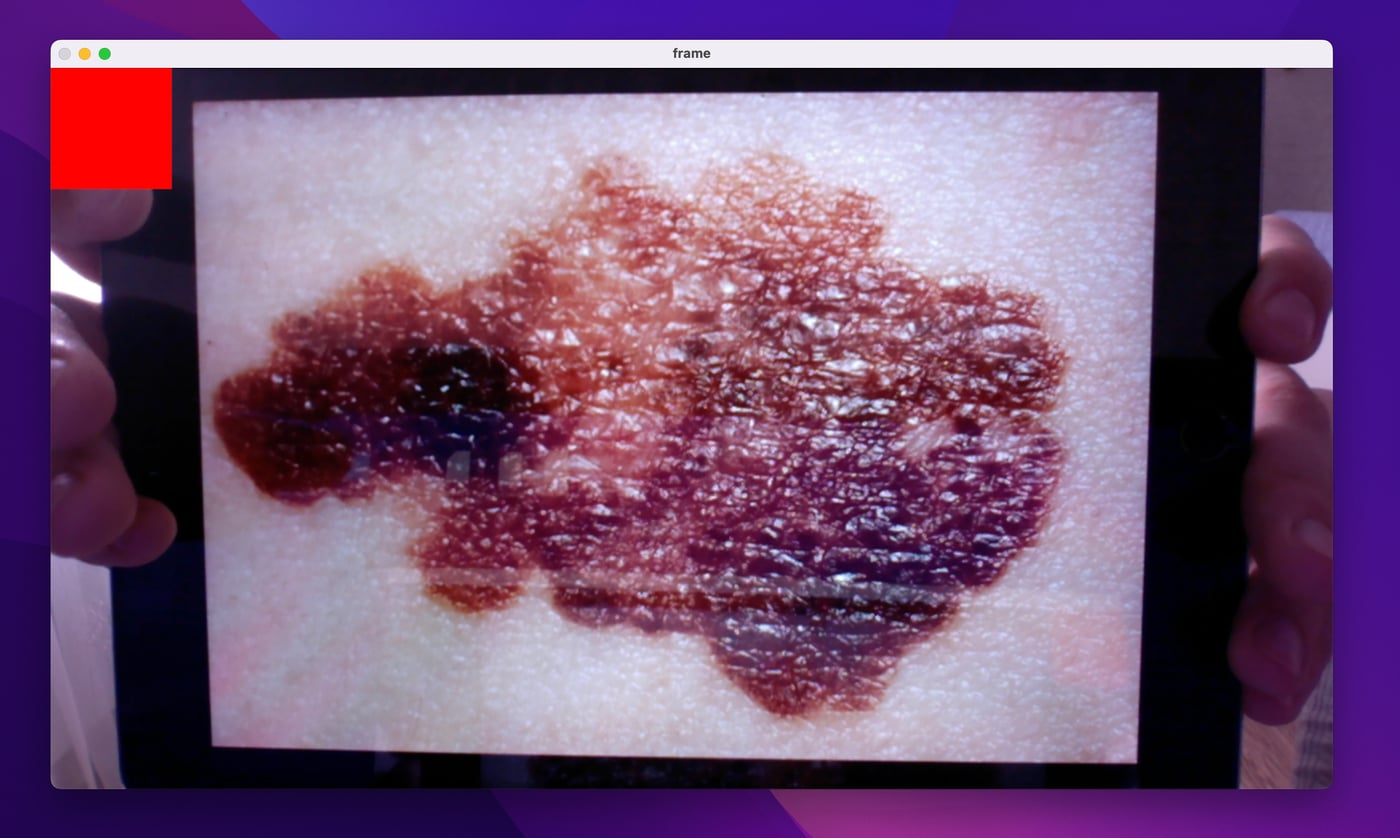

However, the rectangle instantly became red when there is a probability that lesions are cancerous. For the demonstration below I placed my iPad with the photo of a melanoma near the camera. NN easily detected it.

Appendix: Quick Start

1. Download ISIC 2020 dataset.
2. Specify the path to the dataset in Data-Transformer.py.
3. Run Data-Transformer.py.
4. Copy paths of the data.npy and labels.npy which you will get after Data-Transformer.py executes to one of the files with -Model postfix.
5. Train the model.
6. Check its accuracy on the ISIC Kaggle Competition
7. Use the model in your research, project, or just for fun!

Project Timeline

• Project structure development (August 2022)
• Data formatting and preprocessing (September 2022)
• Deep learning models and bot blueprint (October 2022)
• Melanoma-Detector bot release (January 2023)
• Real-Time melanoma detection (February 2023)
• Final readme and summing up (April 2023)
